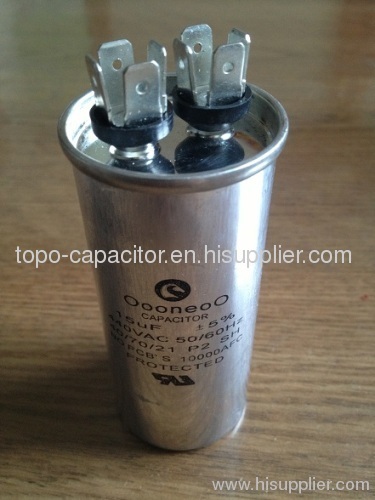

OOONEOO CBB65 Air Conditioning compressors capacitors, 15MFD, 440VAC, Round

Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: CBB65
Production Capacity: 300,000pcs/month
Delivery Date: 15-30 days
Means of Transport: Ocean,Land,Air
Packing: export standard paper carto...

Our products has got CQC / TUV/ CE / SGS / UL approval.

Construction
Dielectric: polypropylene film
Aluminum Round & Oval can
Oil type
Features
Self-heating properties
Low dissipation factor
Explosion proof device
Highest safety level P2 safety class to IEC 60252-1
High insulation resistance
Typical applications
For general sine wave applications, mainly as motor run capacitor, air connditioner
Terminals
Fast on

Mounting parts (optional)
Threaded stud at bottom of can (M8, max.torque=5 Nm)
Technical data and specifications
Reference standards
IEC 60252-1
Safety class according IEC 60252-1
P2
Life expectancy to IEC 60252-1
3,000 h( C)~10,000 h(B)
Rated capacitance CR
1 µF~120 µF
Tolerance
+/-5%
Rated voltage VR
110VAC~500VAC
Rated frequency FR
50/60Hz
Maximum ratings
Maximum permissible votage Vmax
1.1*VR (VR=Rated voltage)
Maximum permissible current Imax
1.3*IR (IR=Rated current)
Test data
AC test voltage terminal to terminal VTT
2*VR, 2s (routine test)
2*VR, 60s (type test)
Insulation voltage terminals to case
1.75*VR 2s (type test)
1.75*VR 60s (routine test)
Dissipation factor tan d

Climatic data
Climatic category
25/085/21 to IEC 60068-1
Lower category Tmin
-25 Centigrade
Upper category Tmax
85 Centigrade
Damp heat test Ttest
21 days
