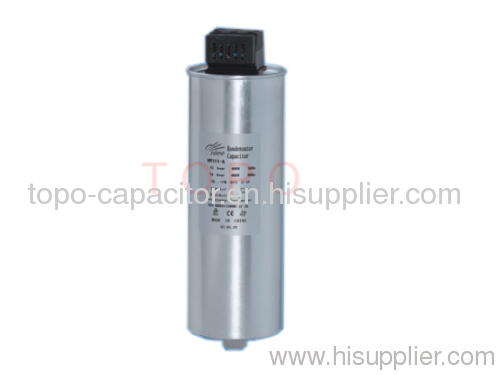

GMKP TYPE LV SELF-HEALING MKP Gas CAPACITORS

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MKPg

Production Capacity: 300,000pcs/month

Delivery Date: 15-30 days

Means of Transport: Ocean,Land,Air

Packing: export standard paper carto...

Brand Name: OOONEOO

Our products has got CQC / TUV/ CE / SGS / UL approval.

Description

1. Dielectric: Polypropylene film.

2. Protection: IP20.

3. Dry type, Wave cut, Extruded round aluminum can with threaded.

4. Three phase, delta connected. With discharge resistor Self-healing technology, overpressure disconnector, Naturally air cooled (or forced air cooling), Indoor mounting.

5. Bolt terminal, ensure the reliable wire connection, meet large capacity and current requirements.

6. Long life, multi component design, increasing the radiation space, lower the rising temperature, the average life reach 100,000 hours.

7. Easy and reliable installation, improve work efficiency.

Technical data and specifications

Reference standards	IEC831-1, IEC831-2, GB/T12747-2004
Rated voltage	≤1000V, 50/60Hz
Tolerance	-5 / +10%
Rated capacity	1KV 30KV
Over voltage	Un+10%(8h/24h)/ Un+30%(one minutes)
Over current	1.3 × In
Flowing current	200 times rated current
Tolerance	± 3%
Wastage (medium)	<0.2W/kVar
Allowed max humidity	95%
Stress between pole and shell	3000VAC, 10S
Stress between pole	2.15Un, AC, 10S
Terminals	M6/M8/M12 copper bolt, max cable 25mm2, electric shock protection shield
Climate types	-25/ D (max+55℃)

Model (MKPG)	Rated Volume (KVAR)	Rated Voltage (VAC)	Rated Current (A)	Rated Capacity (uF)	Size (mm)	Bolt
0.25-1-1	1	250	4	50	Φ70x120	M12x16
0.25-2-1	2	250	8	100	Φ70x120
0.25-3-1	3	250	12	150	Φ70x120
0.25-4-1	4	250	16	200	Φ70x120
0.25-5-1	5	250	20	250	Φ70x120
0.25-6-1	6	250	24	300	Φ70x120
0.25-6.7-1	6.7	250	26.4	330	Φ70x120
0.25-8-1	8	250	32	400	Φ75x240
0.25-10-1	10	250	40	500	Φ120x180	M12x25
0.25-12-1	12	250	48	600	Φ120x240
0.25-15-1	15	250	60	750	Φ120x240
0.25-20-1	20	250	80	1000	Φ120x240
0.4-3-3	3	400	3x20	3x4.3	Φ90x180	M12x16
0.4-5-3	5	400	3x33	3x7.2	Φ90x180
0.4-6-3	6	400	3x40	3x8.6	Φ90x180
0.4-7.5-3	7.5	400	3x50	3x10.8	Φ90x240
0.4-10-3	10	400	3x56	3x14.4	Φ90x240
0.4-12.5-3	12.5	400	3x83	3x18	Φ90x240
0.4-15-3	15	400	3x100	3x21.7	Φ120x240	M12x25
0.4-20-3	20	400	3x133	3x29	Φ120x240
0.4-22.5-3	22.5	400	3x149	3x32.5	Φ120x240
0.4-25-3	25	400	3x166	3x36	Φ120x240
0.4-30-3	30	400	3x199	3x43.3	Φ120x290
0.44-3-3	3	440	3x16	3x3.9	Φ90x180	M12x16
0.44-5-3	5	440	3x27	3x6.6	Φ90x180
0.44-6-3	6	440	3x33	3x7.8	Φ90x180
0.44-7.5-3	7.5	440	3x41	3x9.8	Φ90x240
0.44-10-3	10	440	3x54.8	3x13	Φ90x240
0.44-12.5-3	12.5	440	3x69	3x16.4	Φ90x240
0.44-15-3	15	440	3x82	3x19.7	Φ90x240
0.44-20-3	20	440	3x110	3x26.2	Φ120x240	M16x25
0.44-22.5-3	22.5	440	3x123	3x30	Φ120x240
0.44-25-3	25	440	3x137	3x33	Φ120x290
0.44-30-3	30	440	3x164	3x39.4	Φ120x290
0.525-3-3	3	525	3x11	3x3.3	Φ90x180	M12x16
0.525-5-3	5	525	3x19	3x5.5	Φ90x180
0.525-6-3	6	525	3x23	3x6.6	Φ90x180
0.525-7.5-3	7.5	525	3x28.8	3x8.2	Φ90x240
0.525-10-3	10	525	3x38.5	3x11	Φ90x240
0.525-12.5-3	12.5	525	3x48.1	3x13.7	Φ90x240
0.525-15-3	15	525	3x57.7	3x16.5	Φ90x240
0.525-20-3	20	525	3x77	3x22	Φ120x240	M16x25
0.525-22.5-3	22.5	525	3x86.6	3x24.7	Φ120x240
0.525-25-3	25	525	3x96.2	3x27.5	Φ120x240
0.525-30-3	30	525	3x115.5	3x33	Φ120x240
0.69-3-3	3	690	20	3x2.5	Φ90x180	M12x16
0.69-5-3	5	690	33	3x4	Φ90x180
0.69-6-3	6	690	40	3x5	Φ90x180
0.69-7.5-3	7.5	690	50	3x6.2	Φ90x240
0.69-10-3	10	690	66	3x8.3	Φ90x240
0.69-12.5-3	12.5	690	84	3x10.5	Φ90x240
0.69-15-3	15	690	100	3x12.6	Φ90x240
0.69-20-3	20	690	134	3x16.7	Φ120x240	M16x25
0.69-22.5-3	22.5	690	150	3x18.8	Φ120x240
0.69-25-3	25	690	167	3x21	Φ120x240
0.69-30-3	30	690	199	3x25.1	Φ120x240
