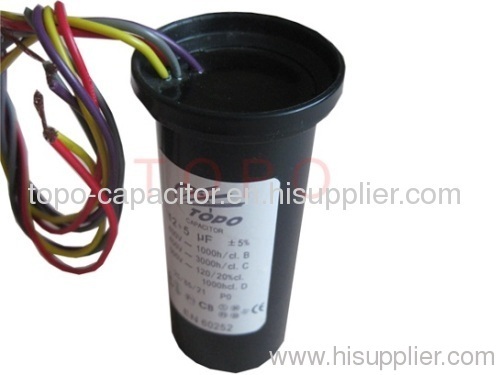

CBB60 4 Wires Washing Machine Capacitors, 12/5 MFD, 450 VAC CBB60 manufacturer from China Ningbo Topo Electronic Co.,Ltd.

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: CBB60

Production Capacity: 300,000pcs/month

Delivery Date: 15-30 days

Brand Name: TOPO

Rated Voltage: 110Vac-500Vac

Means of Transport: Ocean,Land,Air

Packing: export standard paper carto...

Application: AC / Motor

Capacitance: 1uF-120uF

Operating Temperature: 25/085/21

Our products has got CQC / TUV/ CE / RoHS / UL approval.

Construction
Dielectric: polypropylene film
Plastic & Round can

Dry type

Features
Self-heating properties
Low dissipation factor
P0 safety class to IEC 60252-1
High insulation resistance

Typical applications
For general sine wave applications,mainly as motor run capacitor

Terminals
Single Fast on
Double Fast on
Tinned Copper Wire

Twin Core Cable

Mounting parts (optional)

Threaded stud at bottom of can (M8, max.torque=5 Nm)

Fast fixation for mounting into a hole of f 8 mm

Technical data and specifications

Maximum ratings

Maximum permissible votage Vmax	1.1*V_R (V_R=Rated voltage)
Maximum permissible current Imax	1.3*I_R (I_R=Rated current)

Test data

AC test voltage terminal to terminal V_TT	2*V_R, 2s (routine test)
AC test voltage terminal to terminal V_TT	2*V_R, 60s (type test)
Dissipation factor tan d	0.002 (50Hz)

Climatic data
